Resin 3D Printer
Resin 3D Printer
-
13" 7K Monochrome Screen
-
Anycubic Auto Resin Filler
-
High Precision Ball Screw
-
Large Building Size
About Anycubic Photon M3 Max
- 13" 7K Monochrome Screen: Bigger Volume, greater Freedom.
- Anycubic Auto Resin Filler: Smart resin filling, Stopless Printing.
- High Precision Ball Screw: Makes detailed printing experience.
- Large Building Size: 298*164*300mm.
-
- Technical Specifications
- ● Exposure screen: 13.6" monochrome
- ● Printing accuracy: 6,480 x 3,600 px (7K)
- ● Contrast ratio: 450:1
- ● Light source: Parallel matrix (LED lights x 84)
- ● Build plate: Laser engraved platform
- ● Printing speed: ≤ 6 cm/hr
- ● Control panel: 4.3" resistive touch-control
- ● Data input: USB-A 2.0
- ● Rated power: 120W
- ● Print size: 30.0 x 29.8 x 16.4 cm / 11.8 x 11.7 x 6.46 in. (HWD)
- ● Printing volume: 14.7 L / 498.5 oz
- ● Machine size: 59.6 x 40.0 x 40.8 cm / 23.5 x 15.7 x 16 in. (HWD)
- ● Machine weight: 26 kg / 57.3 lb
- Unleash Your Imagination
- Equipped with the industry's first 13.6 inch large screen, building size of 298*164*300mm unleash your creativity and a whole new world of display.
- Well-defined Details
- 7K resolution and high precision ball screw Z axis rail, both make detailed printing experience.
- Smart Resin Filling
- New features live! Anycubic Auto Resin Filler helps resin intelligent filling and intelligent stopping after enough. Hands free resin filling. Rest without worries!
- Foundation Is the Key
- Repeatedly designing and testing laser engraved platform can significantly increase the adhesion of the platform and improve the success rate of printing.
- Speed Up Your Experience
- Anycubic LightTurbo light source system with the LED lights in matrix array make up a powerful light source, enabling fast printing.
- Sharp Details Everytime
- Contrast ratio up to 450:1, 125% higher than other resin printers (200:1), improves the details.
- Save More Precious Time
- The fastest printing speed can reach 60mm/h, and it only takes 2 hours to print the 12cm high miniarure, which is 1 hour less than the 3 hours printing of other resin printers.
- Protect What Matters
- Add dedicated and replaceable screen protector to protect the premium 13.6'' 7K screen and feel relief.
- Fully Compatible Slicer
- Anycubic Photon Workshop is fully compatible with all Anycubic resin printers. It is also perfect for setting some parameter, and also saves the high amount of money spending on third-party slicing software, free and professional.
- Fast printing speed
- High light transmittance
- Large build volume
- Sharp edges and corners
About Anycubic Photon Mono X 6K
- Fast printing speed: Photon Mono X 6K can print a typical 12cm / 4.7in. model in 1.5 hours.
- High light transmittance: High light transmittance makes quick forming possible.
- Large build volume: print up to 9.6 x 7.8 x 4.8 in. / 24.5 x 19.7 x 12.2 cm (HWD) at a time.
- Sharp edges and corners: Adopting an industry-leading screen with 350:1 contrast ratio.
- Technical Specifications
- ● Exposure screen: 9.25’’ monochrome
- ● Printing volume: 199.1 oz. / 1.6 gal. / 5.9 L
- ● Light transmittance: 6%
- ● Contrast ratio: 350:1
- ● Light source: Parallel matrix (LED x 40)
- ● Power density: 5,000 - 6,500 μw/cm² / 34,150 - 44,395 lux
- ● Printing accuracy: 5,760 x 3,600 px (6K)
- ● Horizontal resolution: 34 μm
- ● Printing speed: Max 80mm/h
- ● Control panel: 3.5’’ TFT touch-control
- ● Data input: USB-A 2.0 / LAN
- ● Power supply: 120W
- ● Screen area: 38.22 in² / 248.75 cm²
- ● Machine dimensions: 18.7 x 11.4 x 10.6 in. / 47.5 x 29 x 27 cm (HWD)
- ● Machine weight: 24.3 lb. / 11 kg
- For Freedom to Make
- Anycubic Photon Mono X 6K can print up to 9.6 x 7.8 x 4.8 in. / 24.5 x 19.7 x 12.2 cm (HWD) at a time, similar dimensions to a super midi rugby ball. 199.1 oz. / 1.6 gal. / 5.9 L total build volume leaves more space and freedom for you to make any shapes of cubic.
- 6K Vivid Details
- With 5,760 x 3,600 px resolution, Anycubic Photon Mono X 6K's screen has a total number of over 20 million pixels, which is 125% higher than Anycubic Photon Mono X and its rivals' 4K resolution screen. High resolution brings vivid details to your 3D models.
- Sharp Edges and Corners
- Adopting an industry-leading screen with 350:1 contrast ratio, 75% higher than Anycubic Photon X and its rivals' 200:1, Anycubic Photon Mono X 6K provides your 3D models with extremely sharp and clear edges and corners.
- Protect What Matters
- In order to better protect its premium screen, Anycubic Photon Mono X 6K added a dedicated and replaceable anti-scratch film above the screen itself, making that expensive screen much more durable than its rivals.
- Print, One Step Ahead
- With an impressive print speed at ≤ 8 cm/hr. / 3.15 in./hr., Photon Mono X can print a typical 12cm / 4.7in. model in 1.5 hours, which takes 4.5 hours less than Photon's 6 hours, and 1.5 hours less than its rivals' 3 hours. Fast printing saves your time wasted on waiting.
- Powerful Light Matrix
- 40 bright LED lights are placed into a matrix to make up a powerful and parallel light source, so that Anycubic Photon Mono X 6K can provide ≥90% light uniformity and ≤ 44,395 lux power density to each layer, making fast printing possible.
- High Light Transmittance
- Anycubic Photon Mono X 6K is equipped with an industry leading screen with 6% light transmittance, which is 200% higher than Anycubic Photon Mono X and its rivals' 2%. High light transmittance makes quick forming possible.
- Universal Compatibility
- With 30%-100% light power regulation, Anycubic Photon Mono X 6K supports not only ordinary 405nm UV resins, but also special resins. In addition, adjusting the light power appropriately can extend the lifespan of both the screen and light significantly.
- 9.25'' Large Screen
- Anycubic Photon Mono X 6K is equipped with a large 9.25'' screen, which is 185% larger than Anycubic Photon's 5.5'' screen, 138% larger than a common 6'' screen, and 8% larger than Photon Mono X and its rivals' 8.9'' in screen area.
- Super spotlight
-
AI hardcore brain
-
High agility slicing
-
High stability Z-axis
-
WIFI-APP intelligent control
-
OTA online upgrade
- Flip protective cover
- 4K Monochrome
-
Self-developed system+5-inch portrait mode display
About Creality Halot-Sky
- Super spotlight
-
AI hardcore brain
- High agility slicing
- High stability Z-axis
- WIFI-APP intelligent control
- OTA online upgrade
- Flip protective cover
- 4K Monochrome
-
Self-developed system+5-inch portrait mode display
The self-developed integral light source, Precision light control:
A new generation of light source technology.
Adopt reflection integral structure to realize precise optical layout.
Endow the prototyped models with higher precision and more gloss to realize comprehensive promotion.
Reinforced Z-axis structure, embraces both stability and fineness for more stable operation:
Z-axis dual linear guide rails+dual configuration of the ball and screw
Widened and thickened column profile for stabilized machine body
The micron-level precision operation avoids the layer effect and makes the printing performance more excellent.
More convenient flip protective cover saves more space:
Flip cover design save the flipping operation space
Translucent protective clearly presents the printing process
- High Precision Integral Light Source
- High-Performance Motherboard
- 192*120*200mm Large Printing Size
- 8.9" Monochrome LCD Display
- Wi-Fi/APP Remote Control
-
5.0" Touch Screen
- High Efficient Slicing
- Cooling & Filtration System
About Creality Halot-Lite
- High Precision Integral Light Source
-
High-Performance Motherboard
- 192*120*200mm Large Printing Size
- 8.9" Monochrome LCD Display
- Wi-Fi/APP Remote Control
- 5.0" Touch Screen
- High Efficient Slicing
- Cooling & Filtration System
Integral Light Source, High Precision and Uniformity
The self-developed integral light source adopts the reflection & refraction to make the light intensity distribution of the whole screen uniform, and each dimension of the model with consistent accuracy.
Integral Light Source VS Matrix Light Source
Integral light source: It is composed of 12 lamp beads, and each lamp bead e is composed of 4 light-emitting chips, the uniformity of light source energy can reach more than 80%. When the individual lamp beads are attenuated, the uniformity of the printed model e is not affected.
Ordinary light source: It consists of many ultraviolet lamp beads evenly arranged in a row. The light intensity of the lamp bead splicing area is uneven, and the lamp bead damage has a greater impact on the uniformity of the printed model.
Wi-Fi/APP Remote Control
Creality Cloud APP for monitor printing progress, adjust the printing settings, Start/Stop prints.
Built-in Wi-Fi allows one-click upgrades to the firmware.
Double Heat Dissipation, Efficient Purification
Specially designed dual heat dissipation system, precise and intelligent control to detect the heat source, and quickly evaporate heat.
Activated carbon air filtration system to reduce odor emission and optimize printing experience.
- 10.1-inch Washing/Curing Machine
- 360° all-around curing
- Upgrade the lens UV lamp beads
- Speed/Time settings supported
About Creality UW-02
- 10.1-inch Washing/Curing Machine: Large space for washing and curing, to meet the processing demand of large size models.

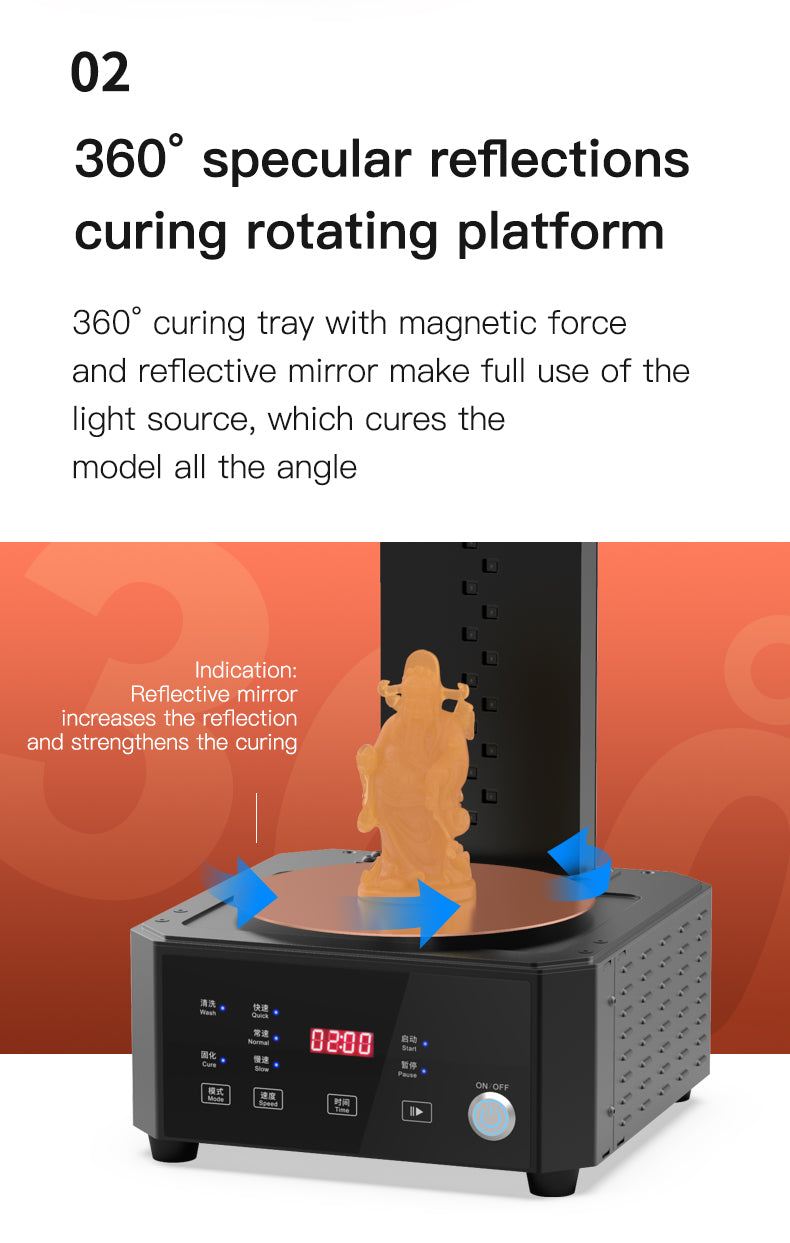

- 360° all-around curing: 360° specular reflections curing rotating platform with 385nm and 405nm dual-band LED beads, all-round curing without dead band.
- Upgrade the lens UV lamp beads: Dual-band UV lamp beads strip, increase entire lens strip to make the UV light source irradiation is the more uniform and concentrated and more complete model.
- Speed/Time settings supported.
- K Monochrome LCD
-
Easy Bed Leveling
- Fast Printing Speed
- Anycubic APP Remote Control
About Anycubic Photon Mono SE
- 6" 2K Monochrome LCD
- Easy Bed Leveling
- Fast Printing Speed
- Anycubic APP Remote Control
Operation : 3.5 inch Touch Screen
Software : ANYCUBIC Photon workshop
Connectivity : USB
Technology: LCD-based SLA
Light-source: high-quality filament(wavelength 405nm)
XY Res.: 0.051mm 2560*1620(2K)
Z Axis Res.: 0.01mm
Layer Res.: 0.01 ~ 0.15mm
Printing Speed: MAX 80mm/h
Rated Power: 55W
Physical Dimensions
Material: 405nm UV Resin
Net Weight: ~8.2 kg
Gross Weight: ~9.7kg
2.Anycubic APP Remote Control
3.Fast Printing Speed
4.New Matrix Parallel Light Source
5.Easy Bed Leveling
6.Metal Frame
7.High Performance Z-axis Motion System
8.UV Cooling System
9.Anycubic Slicer Software
10.High Quality Power Supply
- 6" 2K Monochrome LCD
-
Quick FEP Replacement
- Fast Printing Speed
- High Quality Z-axis
About Anycubic Photon Mono
- 6" 2K Monochrome LCD
- Quick FEP Replacement
- Fast Printing Speed
- High Quality Z-axis
|
|
|
|
Printing Technology | LCD-based SLA Printing | LCD-based SLA Printing | FDM (Fused Deposition Modeling) |
Build Volume | 130x78x160mm | 192x120x245mm | 270x210x190mm |
Print Speed(Max) | 80mm/h | 60mm/h | 150mm/s |
Print Materials | 405nm UV Resin | 405nm UV Resin | PLA, ABS, HIPS, PETG, Wood and TPU |
Illuminant | Matrix | Matrix | None |
Axis Z | Double |
Double | Double |
- 8.9in 4K Monochrome Screen
- Rapid Printing
- Larger Print Size
- Directional UV Matrix Light Source

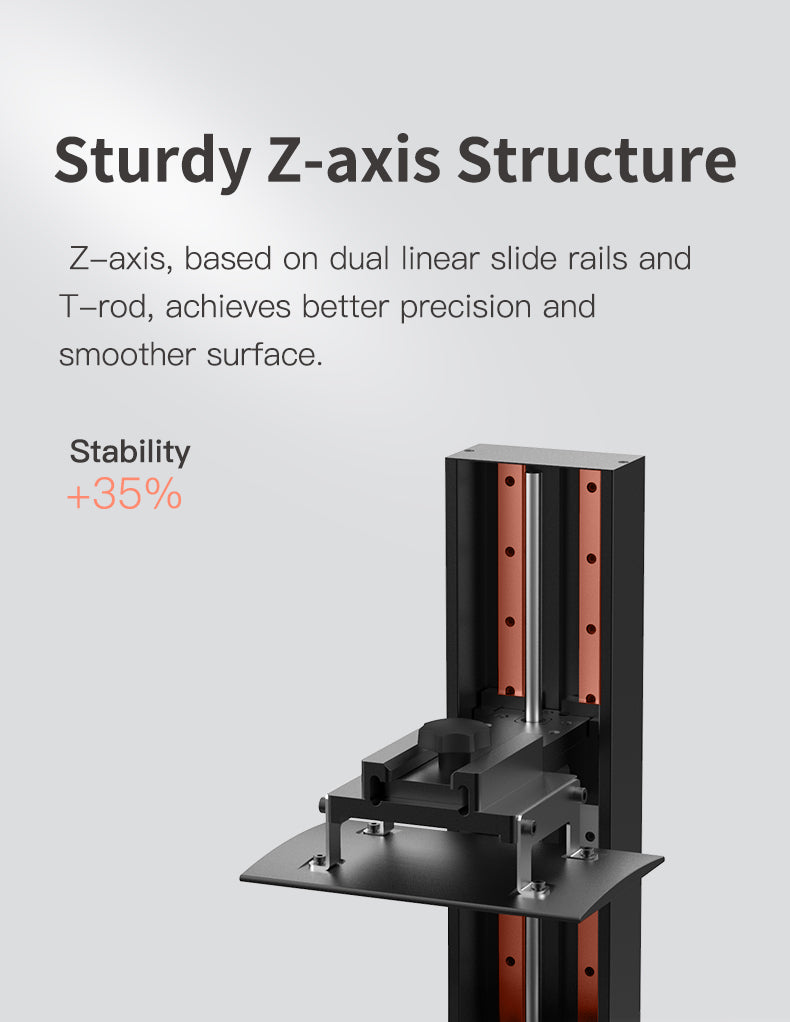

- Stable Dual linear Guide Rails
- 4.3″ Color Touchscreen
- Built-In Air Purification System
- New Convenient Vat Design
- Custom Punched Release Film
- Hassle-Free Leveling
- Sanded Aluminum Build Platform

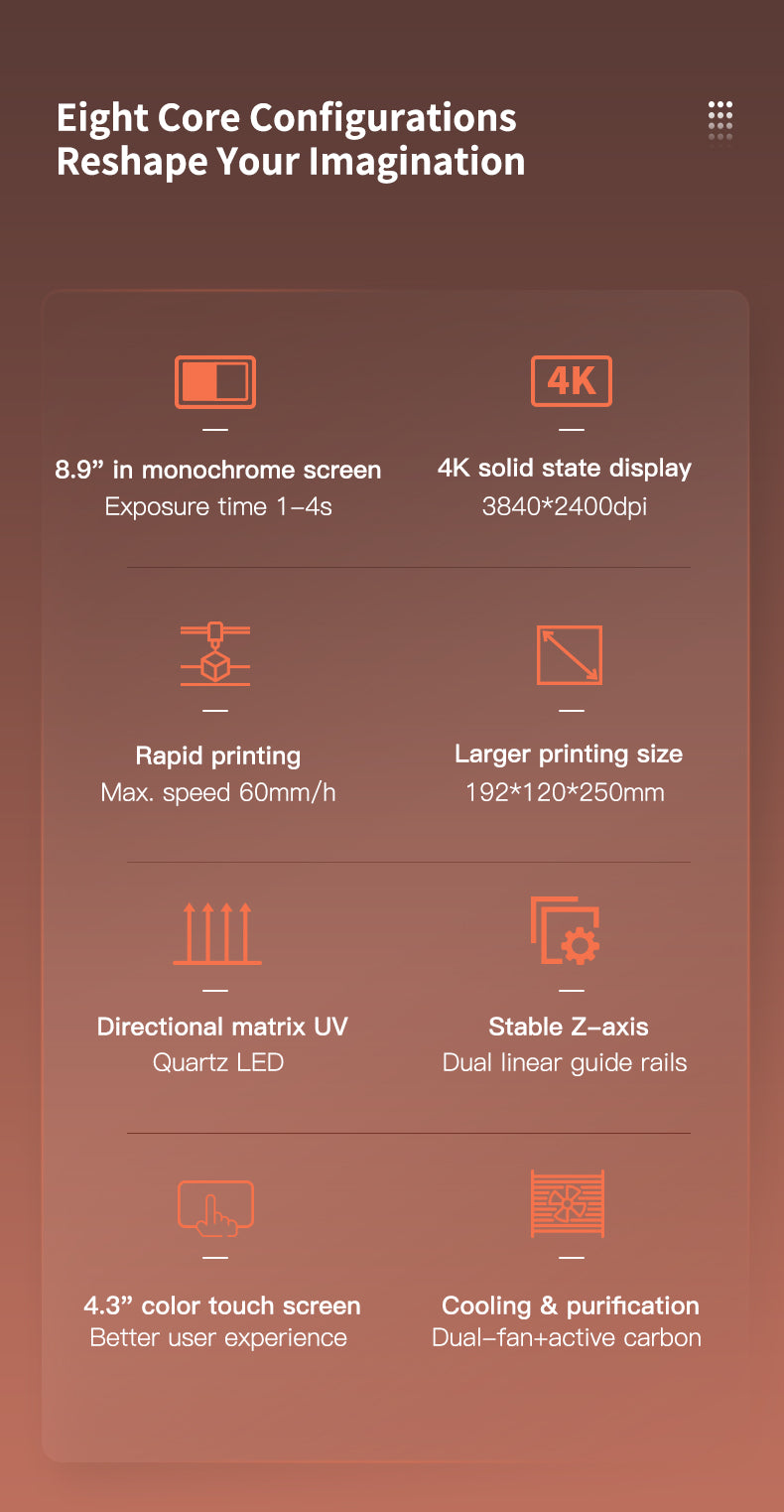

About Creality LD-006

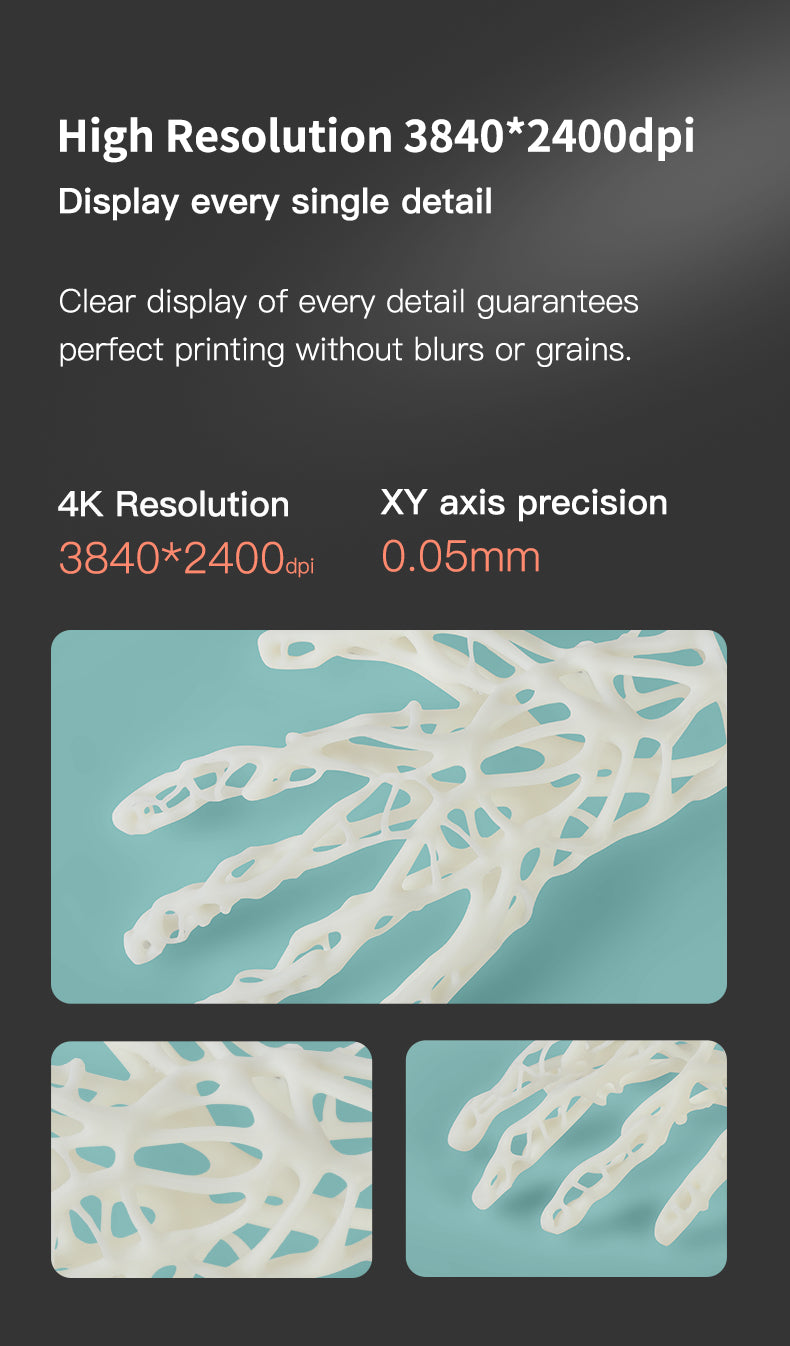

- 8.9in 4K Monochrome Screen
- Rapid Printing

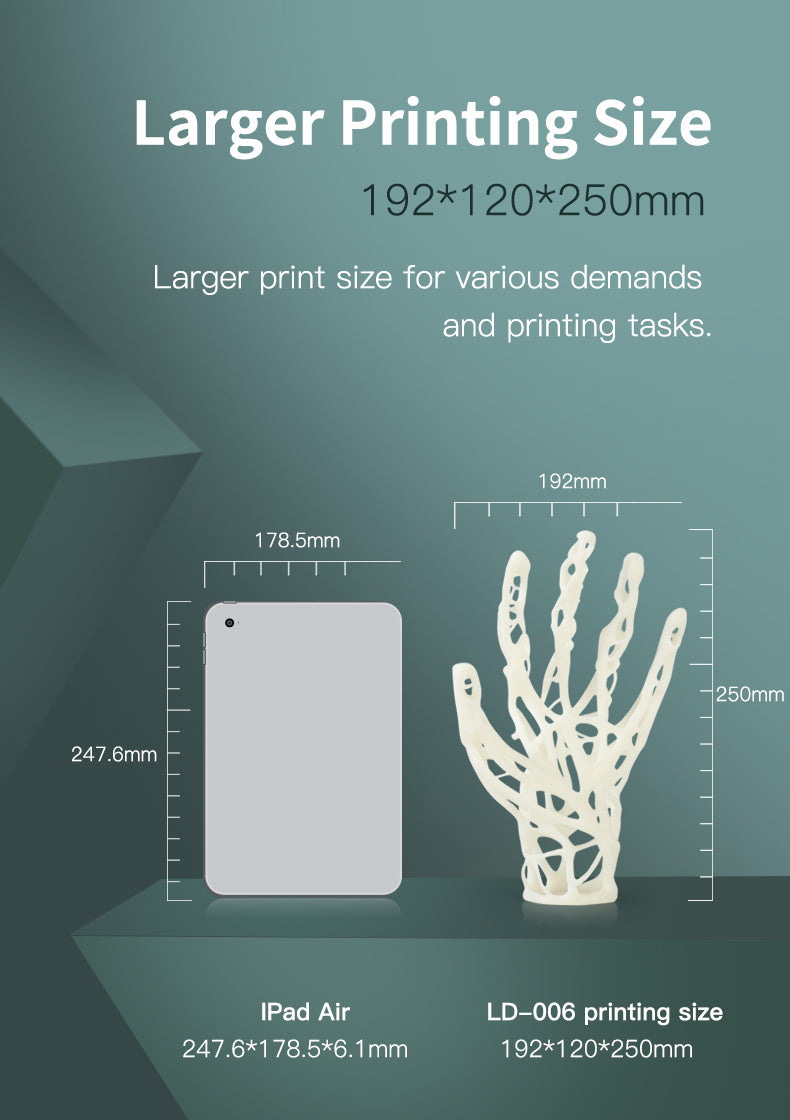

- Larger Print Size
- Directional UV Matrix Light Source
- Stable Dual linear Guide Rails
- 4.3″ Color Touchscreen
- Built-In Air Purification System

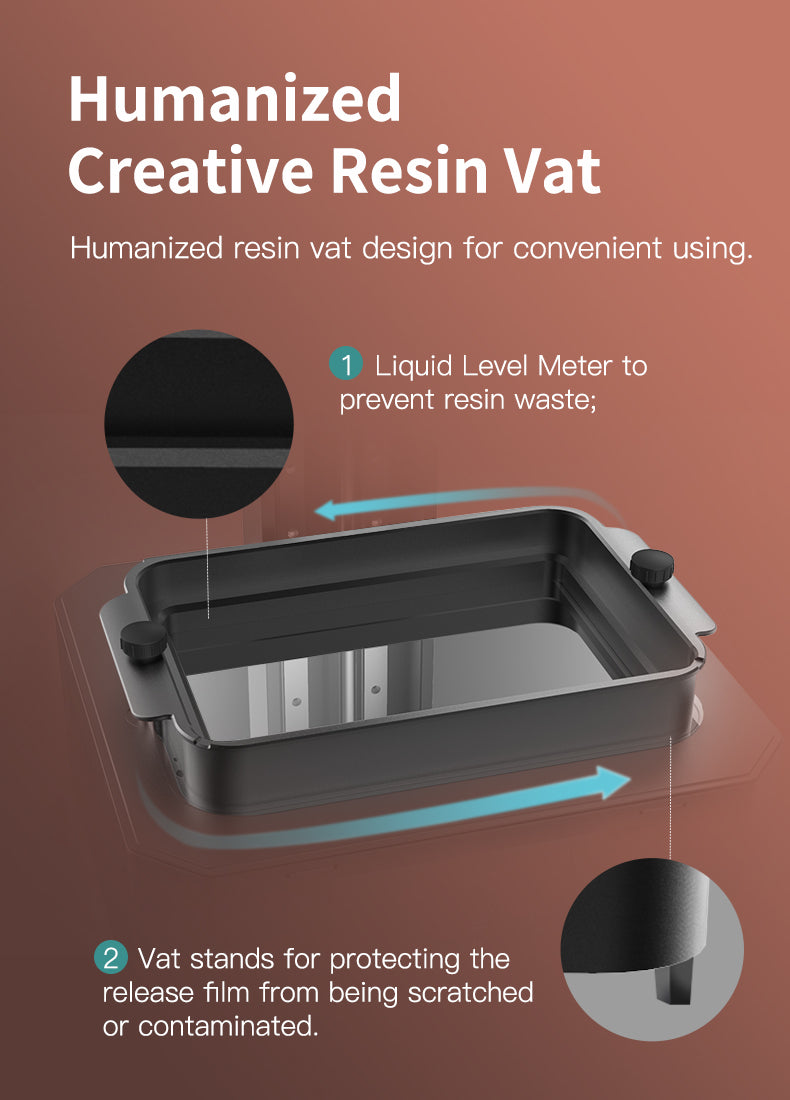

- New Convenient Vat Design
- Custom Punched Release Film
- Hassle-Free Leveling
- Sanded Aluminum Build Platform
- Upgrade UV Light Source Module
- Z-axis Linear Rail
- Air Filtration System with Activated Carbon
- Easy Leveling System
- Powerful Slicer Software
- 3.5 Inchi Full-color Touch Screen
- Hi-Res 6.08” 2K monochrome screen
About Creality LD-002H
- Upgrade UV Light Source Module: The Creality LD-002H is equipped with a UV integrated light source, providing improved light transmission. The UV light achieves 8000uw/cm². A consistent UV light source is the most important factor in printing.
-
Z-axis Linear Rail: The linear rail provides a much stronger structural mechanism for the Z-axis, resulting in better, more refined prints.
- Air Filtration System with Activated Carbon: Activated carbon can effectively reduce the emission of the odor from resin and is more environmental-friendly.
- Easy Leveling System: Simply lower the printing platform atop an ordinary piece of paper. Then hand tighten the leveling nut to complete the leaving process.
- Powerful Slicer Software: The Creality LD-002H resin printer is supported by CHITU BOX software for slicing. CHITU BOX is easy to use, with one-key functions to add a model, adjust supports, model size, etc.
- 3.5 Inchi Full-color Touch Screen: A simple UI design interface can monitor real-time printing information, is easy to operate, and user-friendly.
- NEW ITEM: Hi-Res 6.08” 2K monochrome screen: The Creality LD-002H utilizes a 1620*2560 monochrome LCD for layer exposure. Not only does it increases print speed up to 200% or more, but the life of the screen is increased by up to 400%.
- BUILD AND MOTION
- ANTI-ALIASING
- QUICK LEVELING
- PERFORATED PRINT PLATE
- AIR FILTER
About Creality LD-002R
- BUILD AND MOTION: Great emphasis is being placed on the LD-002R’s robust build quality and the components of its motion system, which is underpinned by a ball screw and single linear rail for the Z-axis.
- ANTI-ALIASING: MSLA 3D printers use an LCD screen to mask an image of a layer over a UV light source. Comprised of hundreds of thousands of pixels, each a little rectangle itself, this tech leaves a telltale sign of the edges of these pixels on the print surface. Often barely visible, this effect can be lessened through the use of a digital processing called anti-aliasing, which interpolates between these edges, smoothing the effect out.
- QUICK LEVELING: Quick leveling in the sense that the machine will lower the print plate to the vat for you, yes the LD-002R is quick leveling. Four hex screws feature on the print plate — loosen them before dropping the plate, and it will align to the level of the screen. Tighten and you’re good to go. Standard MSLA fare.
- PERFORATED PRINT PLATE: Something of an oddity on a small desktop MSLA machine, the Creality LD-002R 3d printer has a perforated print plate. Typically seen on larger bottom-up machines where larger prints present additional pull that might dislodge an improperly adhered print, it’s unusual, and perhaps even distracting overkill, to see it on a smaller machine. It’s not a bad thing, but it makes you wonder why they did it.
- AIR FILTER: A small box at the rear of the print chamber contains a pouch of activated carbon. This should help to remove part of the stench of exposed resin from the air.
- Multiple functions
- Larger size container
- Sealed container design
- Self-adjustable bracket
- Flexible wash method
- Adjustable three-gear speed and 2-90 min optional
- Dual-band UV light source
About Creality UW-01

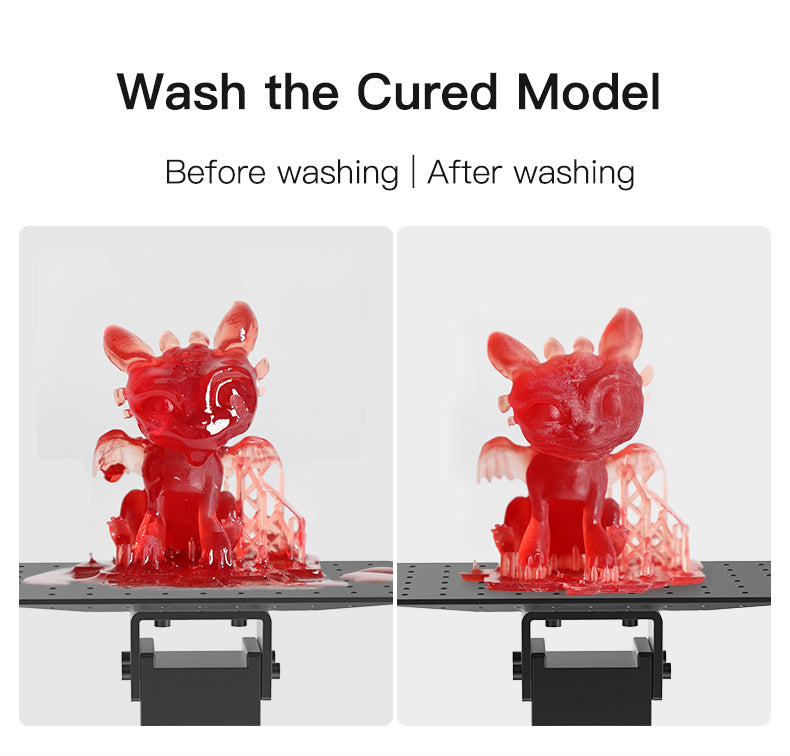

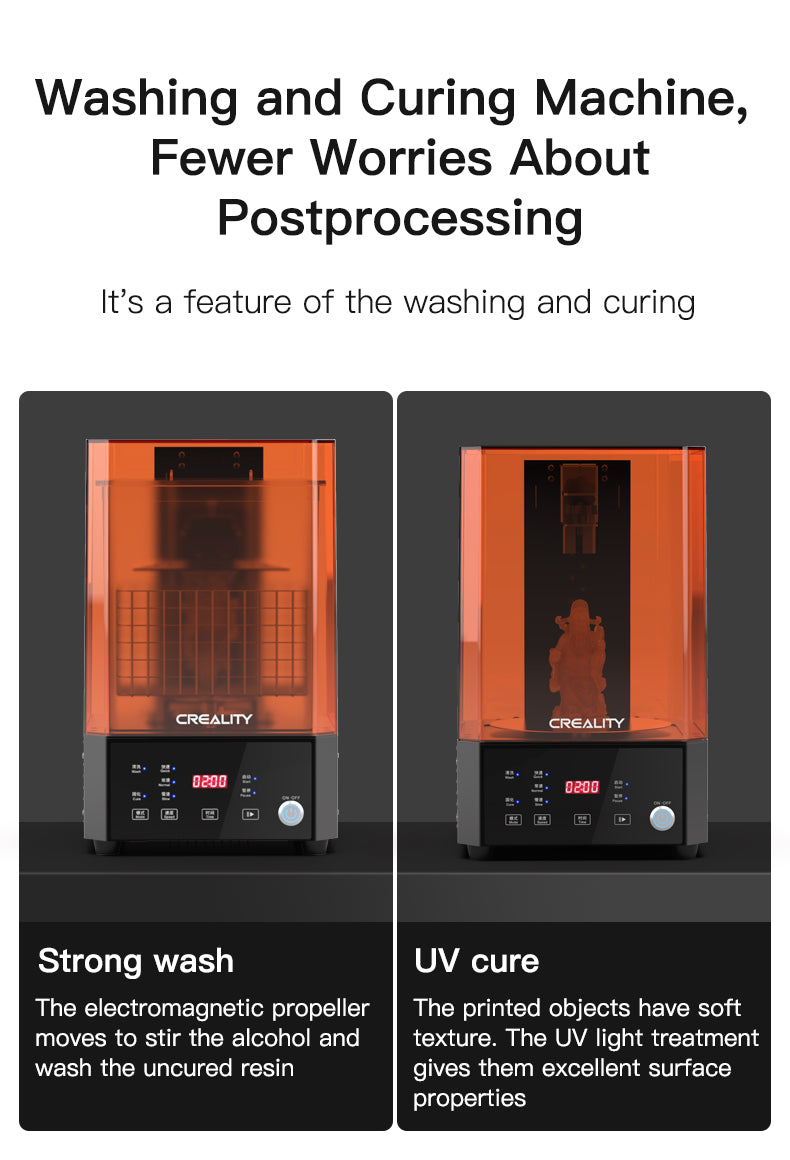

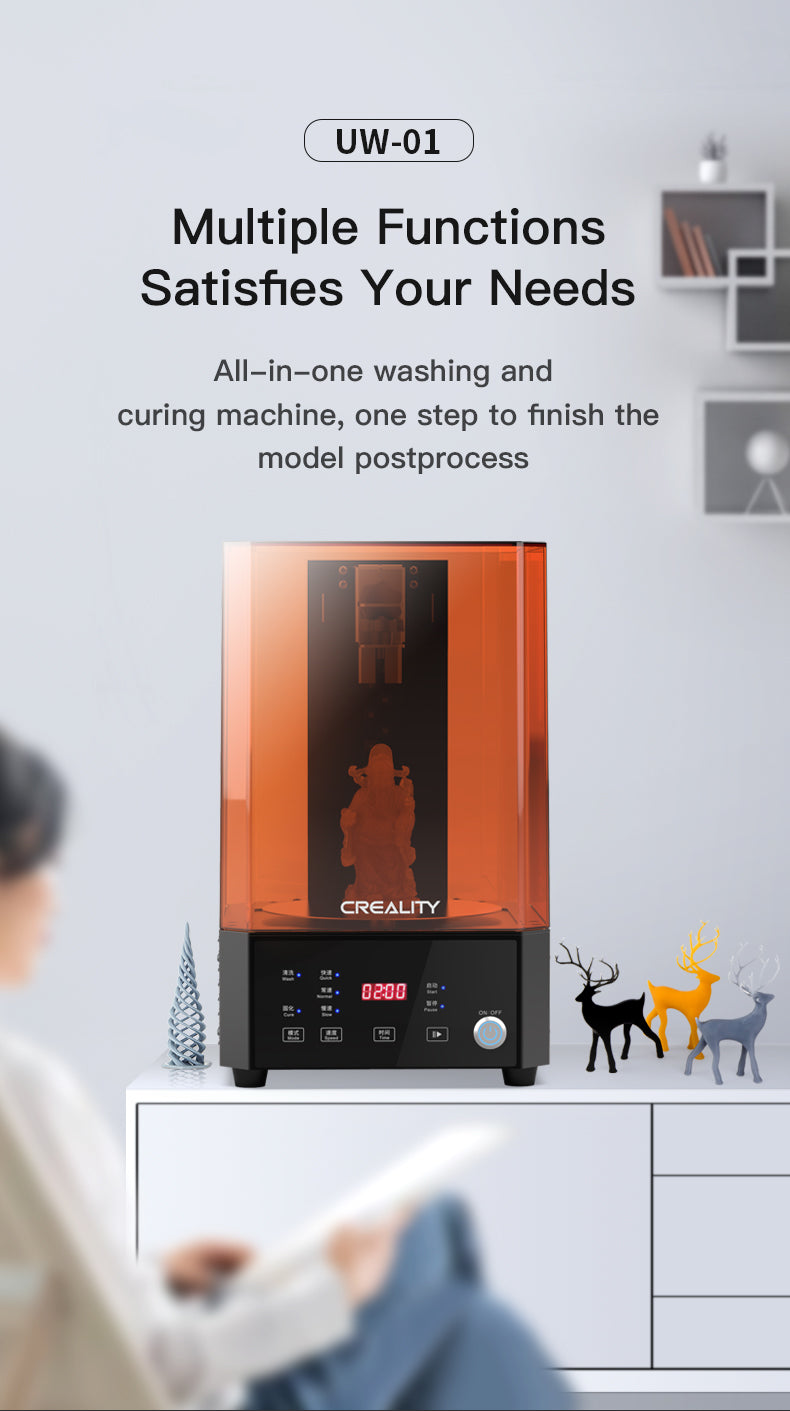

- Multiple functions: a feature that supports washing and curing models.

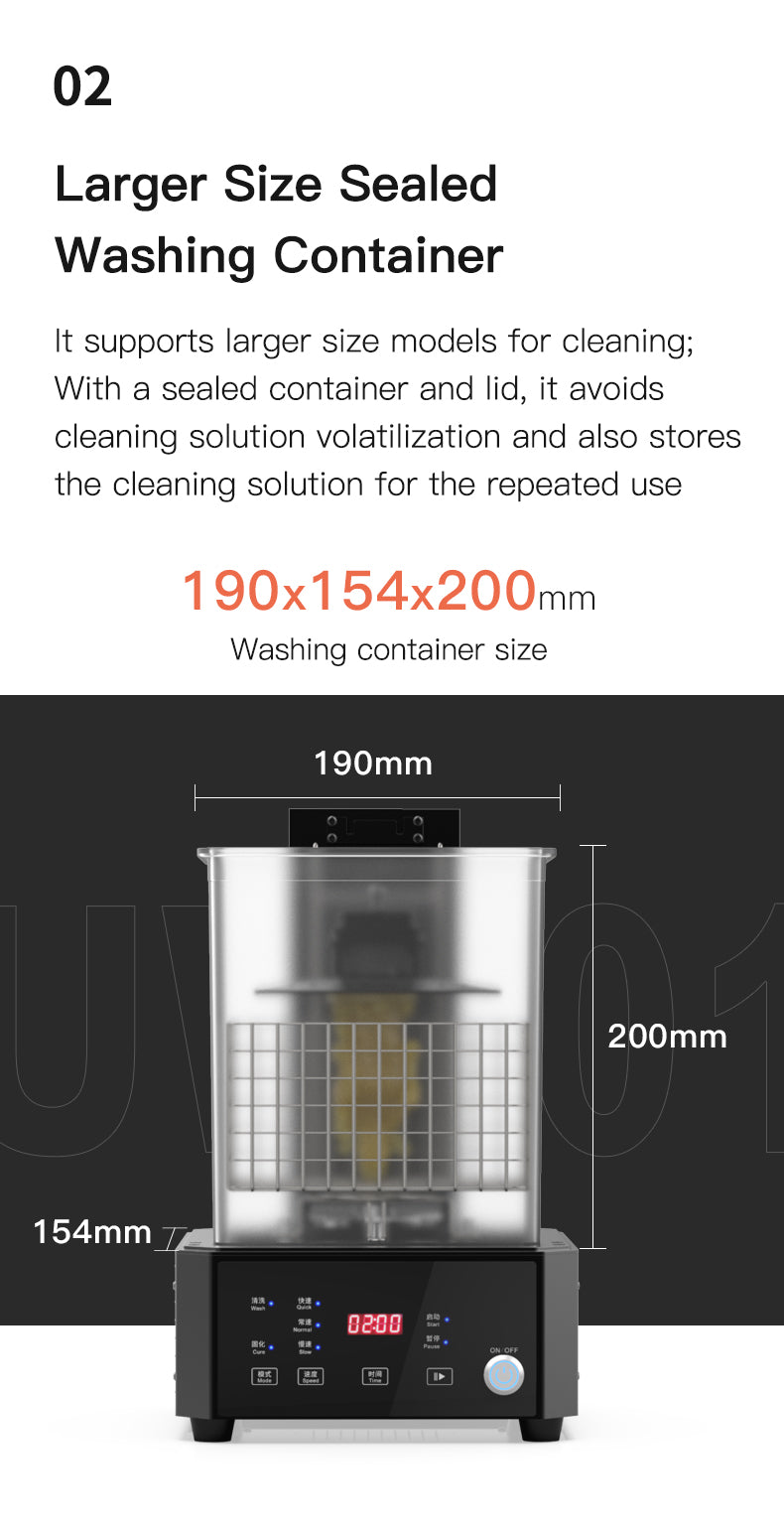

- Larger size container: (190*154*200 mm) washing size, supports larger size models for cleaning.
- Sealed container design: avoid cleaning solution spillage and store the cleaning solution for the repeated use.

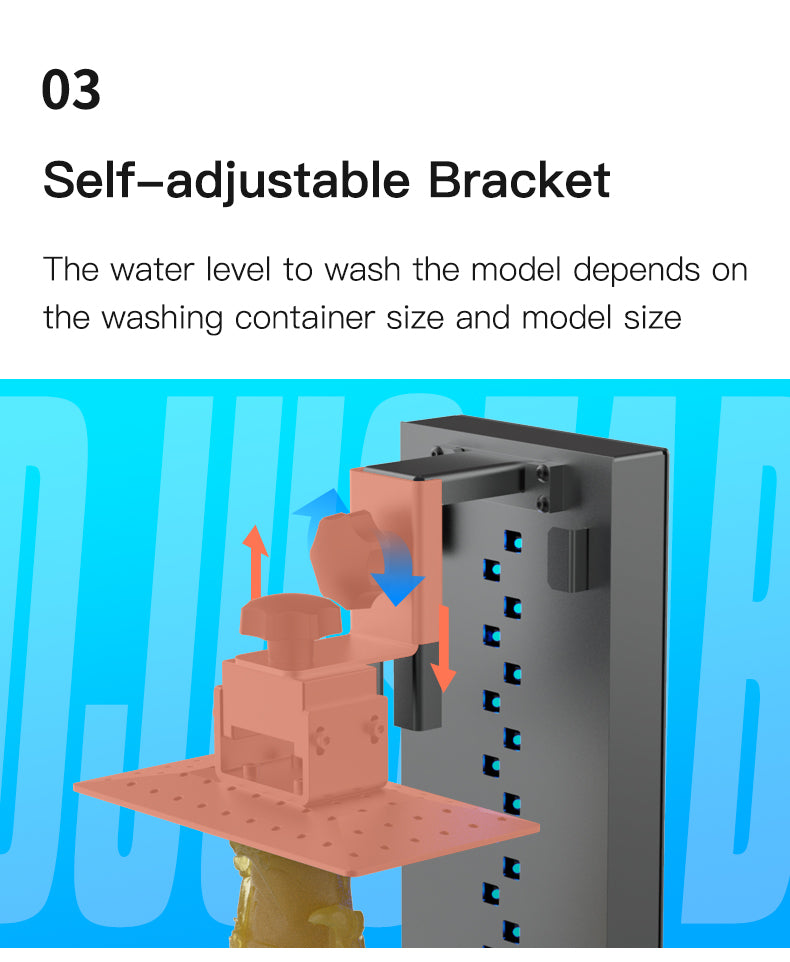

- Self-adjustable bracket: suitable for most resin printing platforms. Flexible in the z-axis, fit the model with the water level.

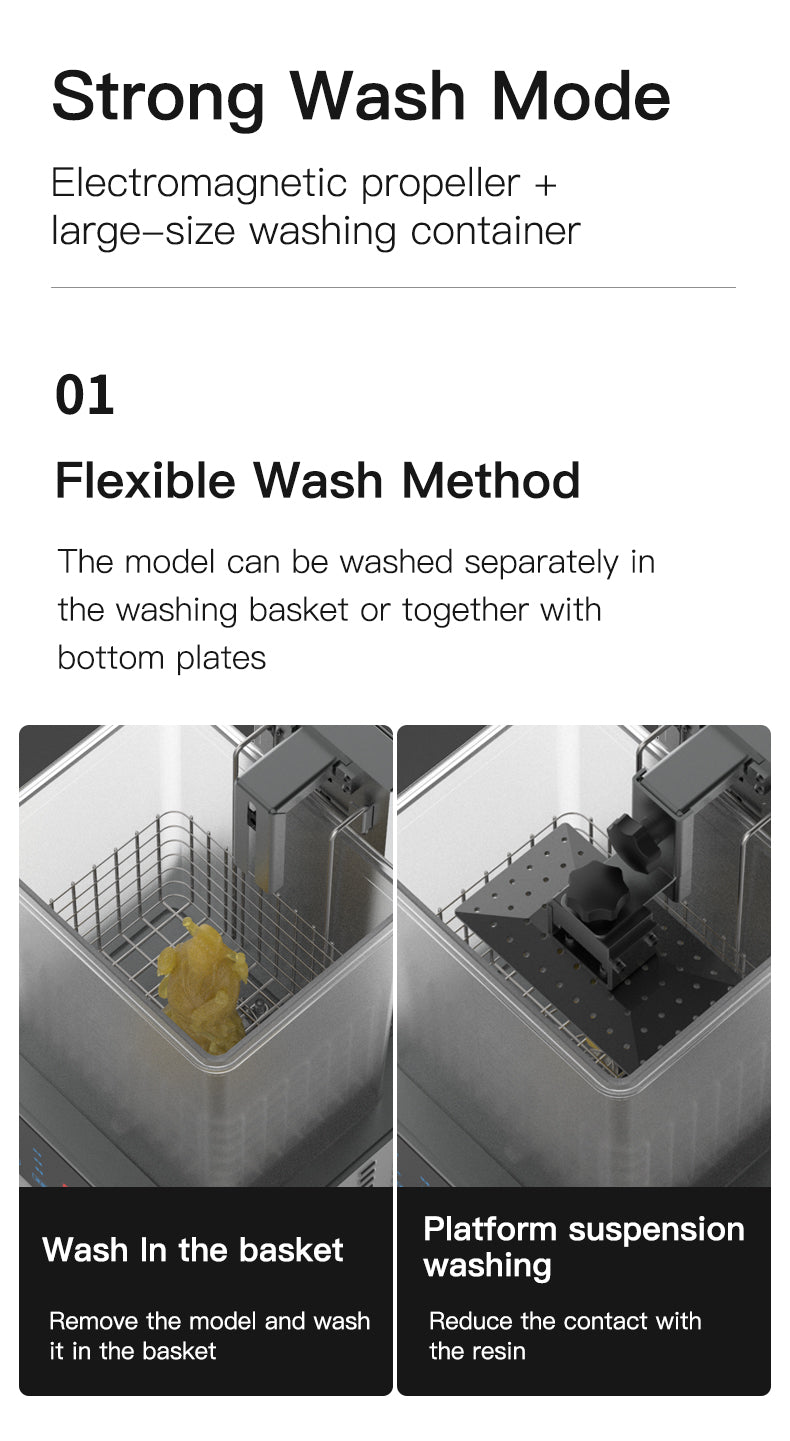

- Flexible wash method: model can be washed separately in a washing basket or together with the bottom plate.

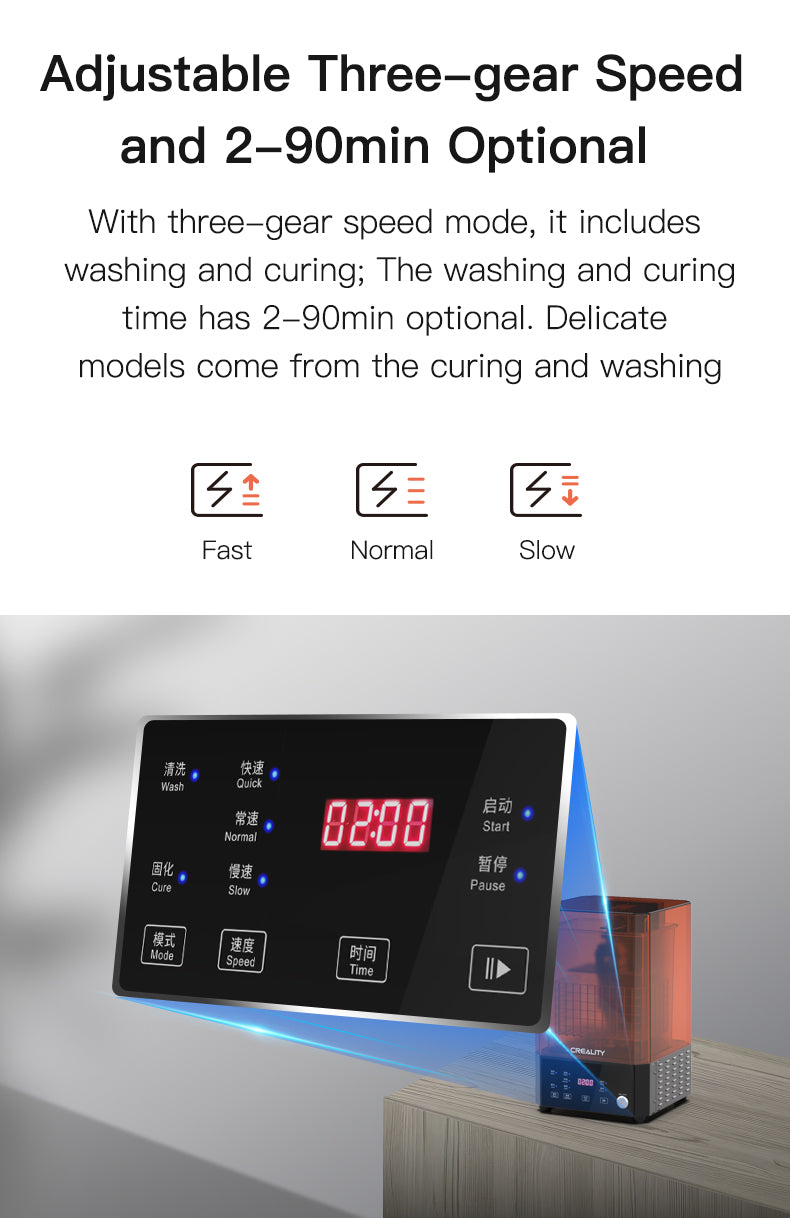

- Adjustable three-gear speed and 2-90 min optional: With three-gear speed mode, it includes washing and curing; The washing and curing time has 2-90 min optional. Delicate models come from curing and washing.

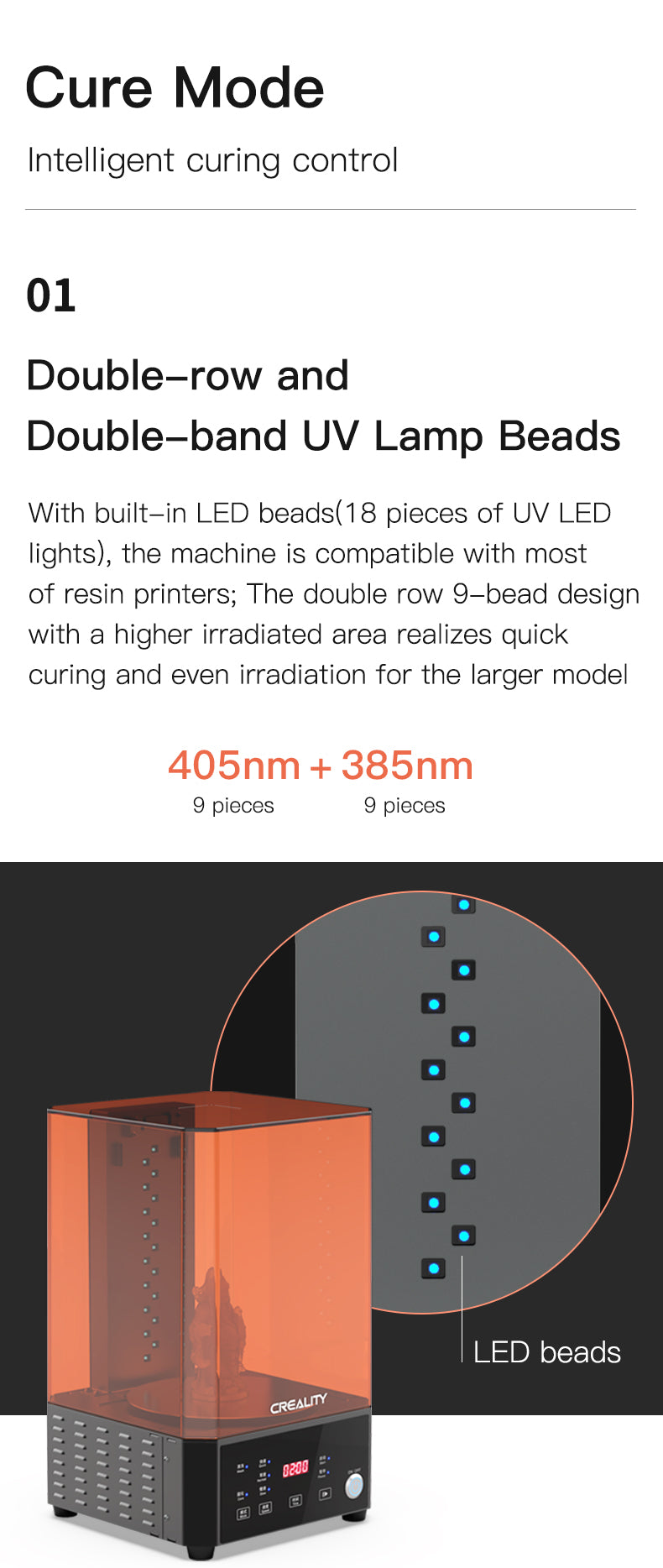

- Dual-band UV light source: realize quick curing even for the larger model. Reflective mirror added to cure the model at all angles.
